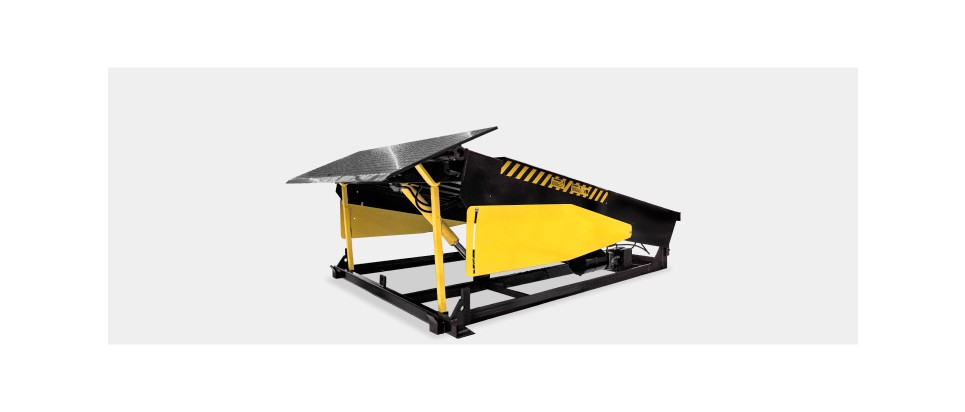

Barrier Lip Leveler


Our hydraulic dock leveler is designed to offer multiple solutions for loading and unloading operations of 30,000, 40,000, and up to 50,000 lbs, maintaining perfect leveling between the warehouse and the unloading truck. Thanks to this powerful ramp system, logistics operations can be effectively optimized with just the touch of a button, whether loading or unloading any type of heavy cargo. It features a top platform made of non-slip sheet metal, providing great safety when moving goods, along with 2 supports and a fusible safety valve for fast and efficient operation. Due to the aesthetic and operational characteristics of this ramp, it can be used in industrial buildings, warehouses, maintenance areas, shopping centers, logistics/distribution centers, and factories in any sector.

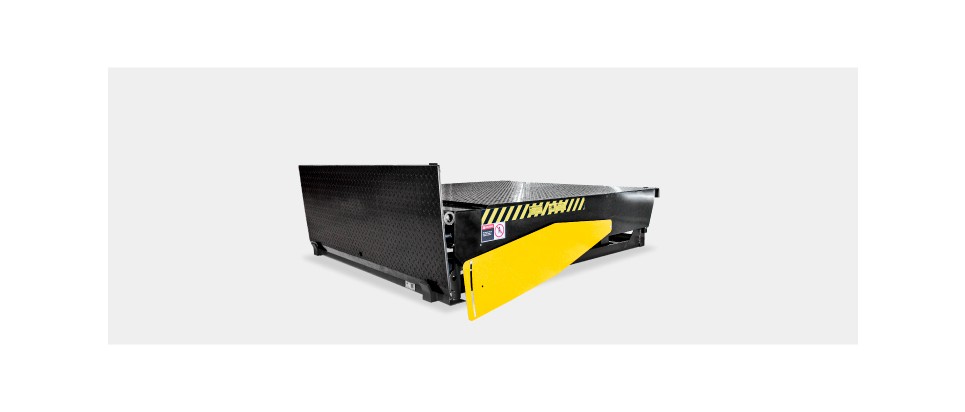

The model with a safety lip additionally creates a barrier on the dock that prevents dangerous maneuvers when there is cross traffic. The position of the lip when the equipment is at rest protects against performing maneuvers at the edge of the dock.

Once the ramp is operating, the lip provides a secure connection between the dock and the transport, thereby offering safety to the user in either position.

All our dock levelers are designed to operate under conditions that involve constant use and climate variations. For more information on the specifications of our dock leveler, download its user manual.

At Tecnorampa, we are committed to manufacturing ramps with the highest technology to deliver an effective solution in the logistics of every industry.

Technical Details

  • The ramp can be manufactured to transport loads of 30,000, 40,000, and 50,000 lbs.
  • Nominal dimensions: 6' x 8' (1829 mm x 2438 mm) *We are a manufacturer; dimensional options available.
  • Nominal platform thickness: ¼" (6.4 mm)
  • Platform dimensions: 72" x 99 ½" (1829 mm x 2527 mm)
  • Structure: smooth sheet metal, 3/16" thick
  • Leveling: 12" (3048 mm) above dock level, 12" (3048 mm) below dock level
  • Standard lip: 16" (406 mm) *Optional lips of 18" and 20"
  • Nominal lip thickness: 5/8" and 3/4"
  • Operating system: hydraulic
