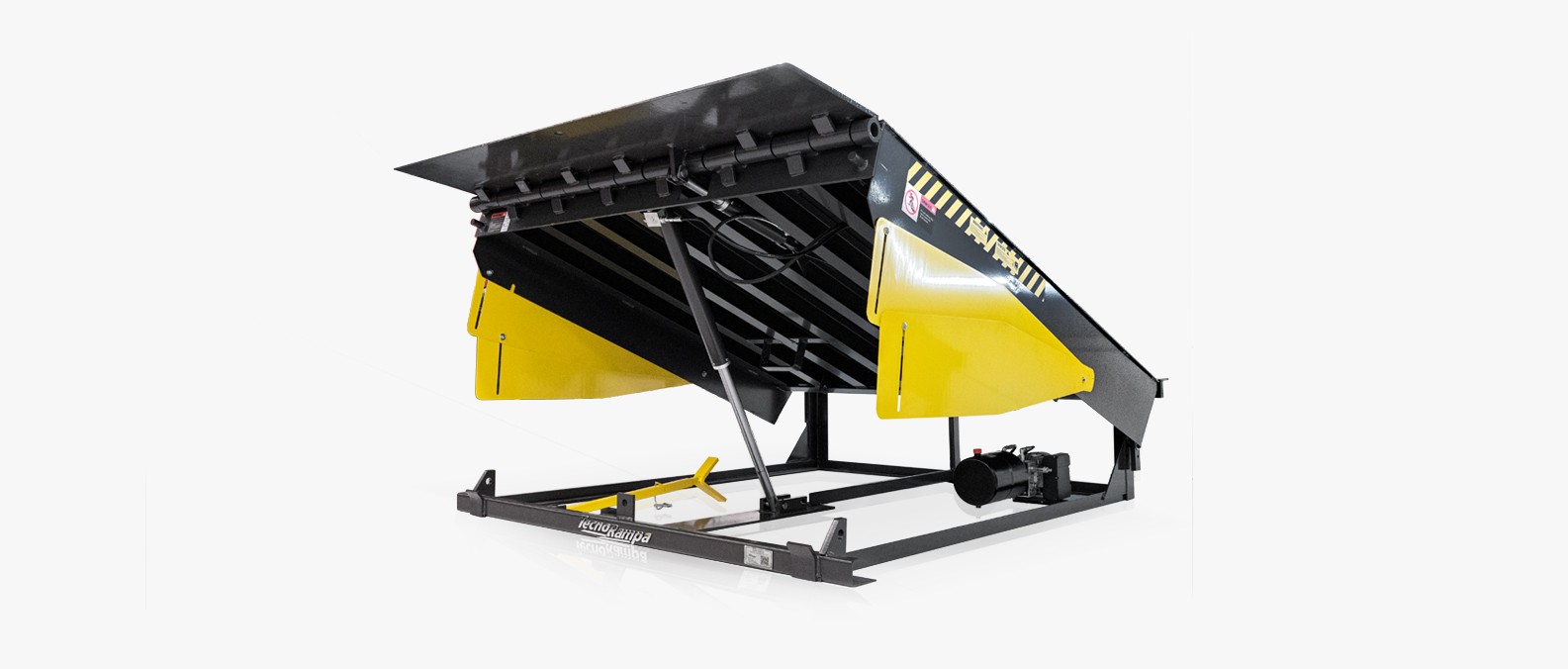

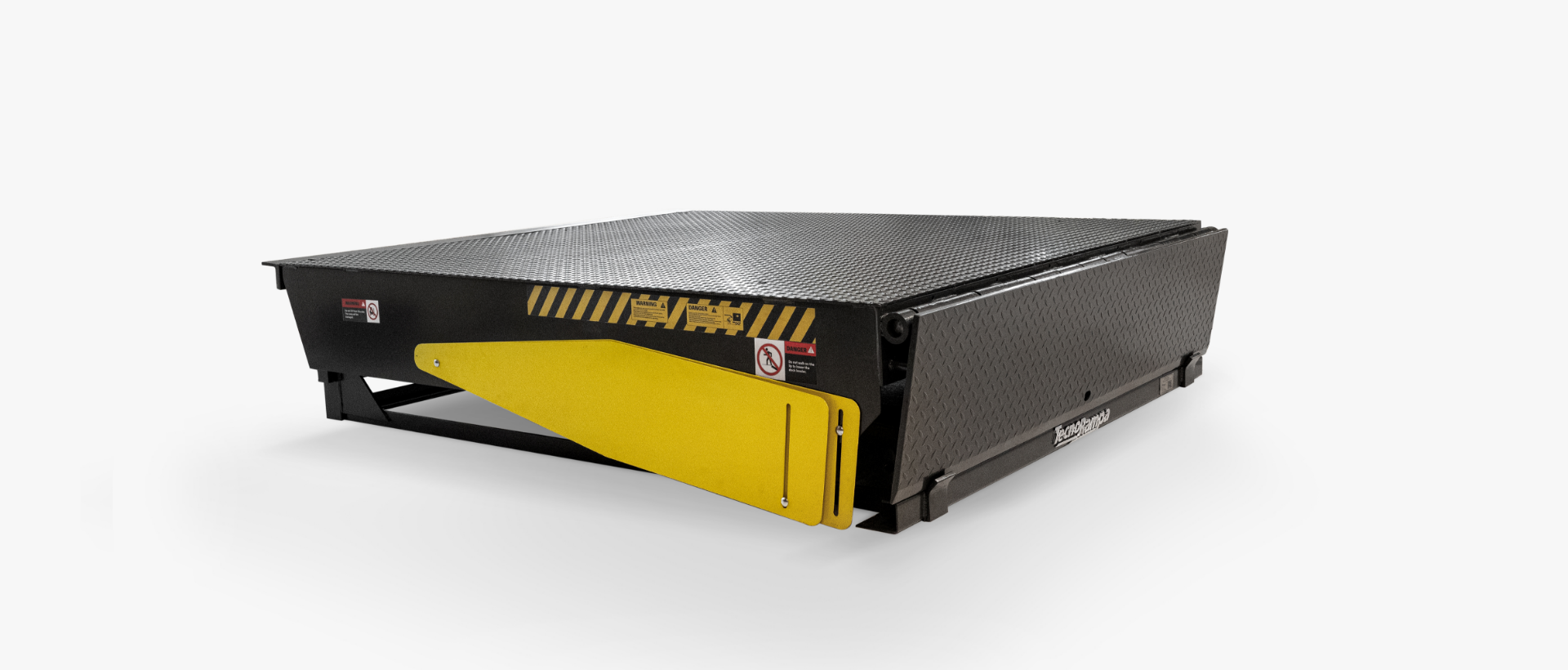

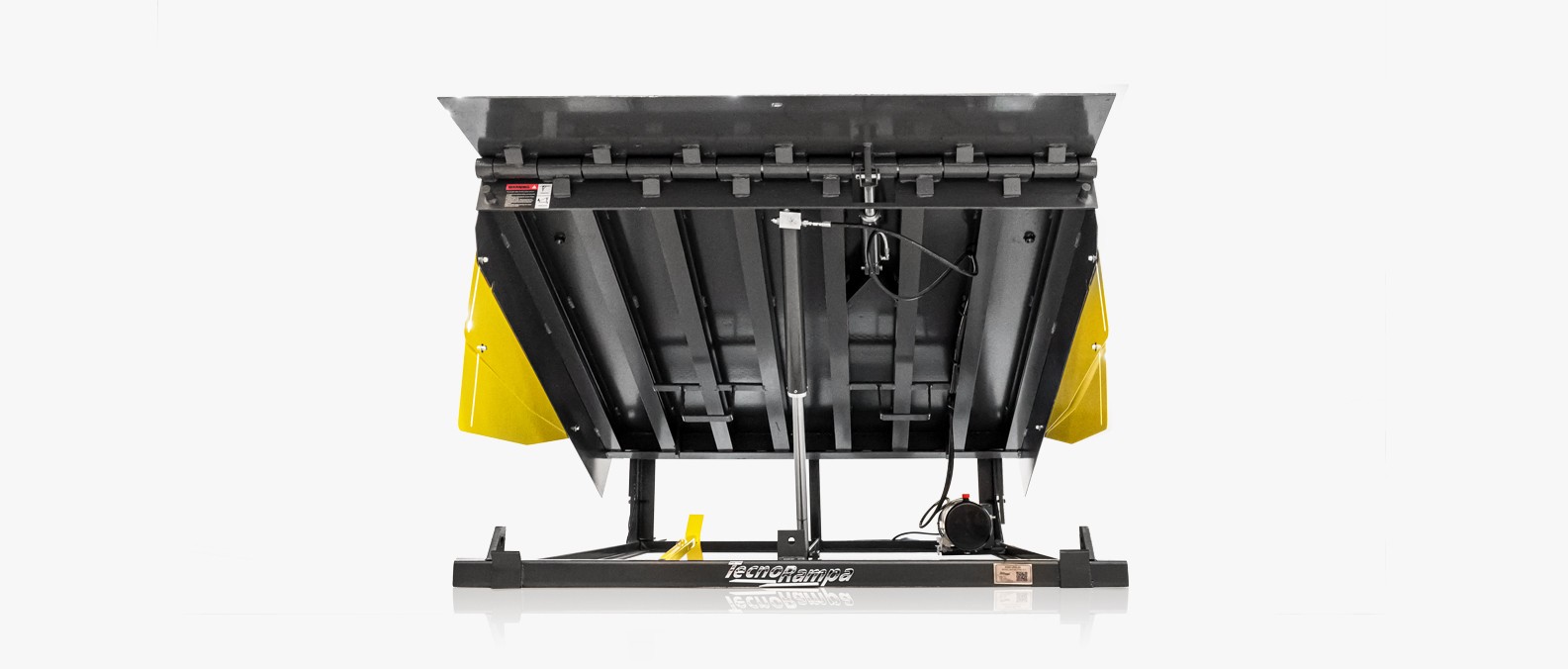

Hydraulic Dock Leveler

Description

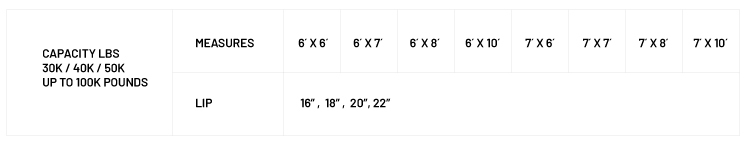

Capacity

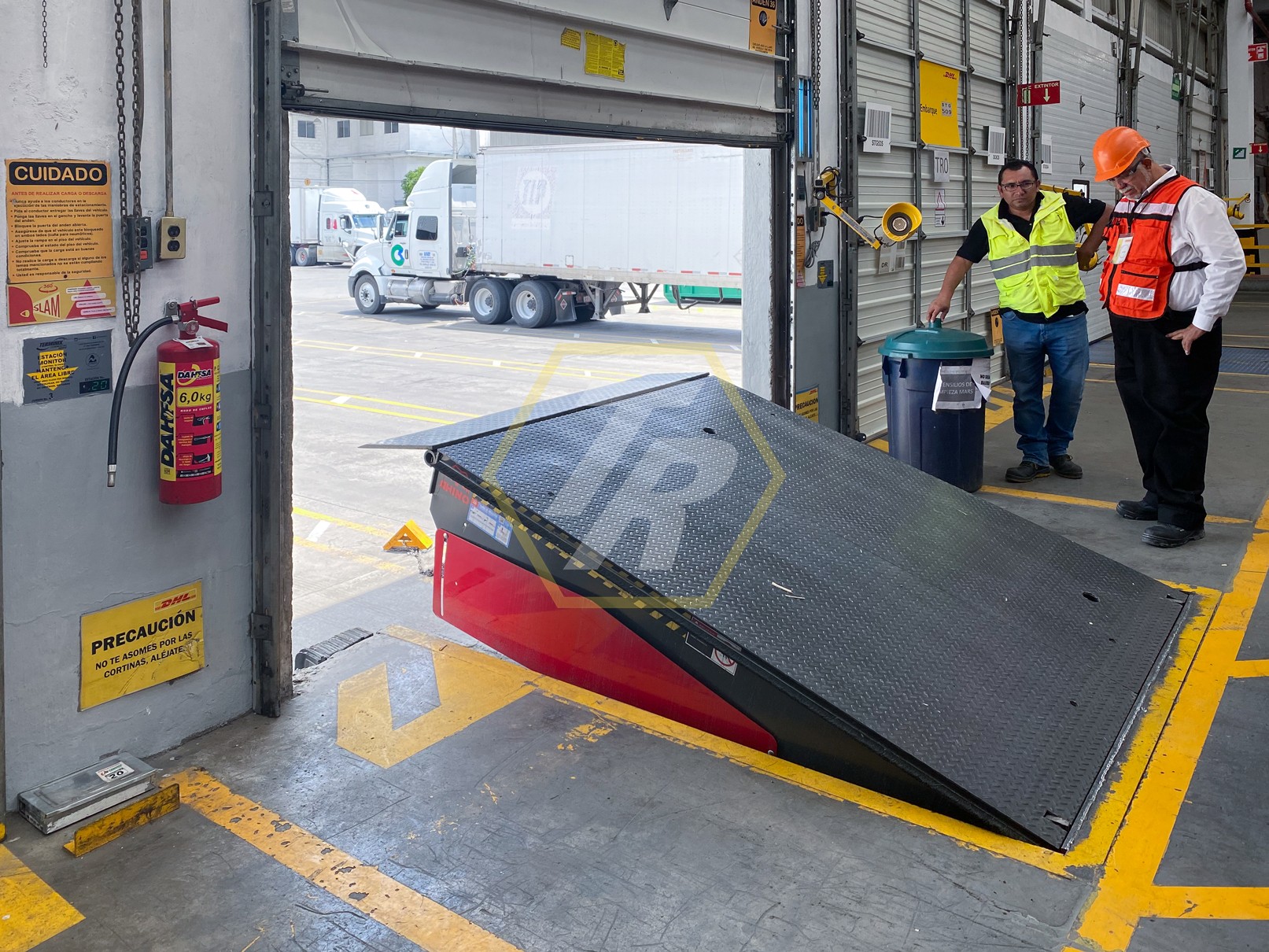

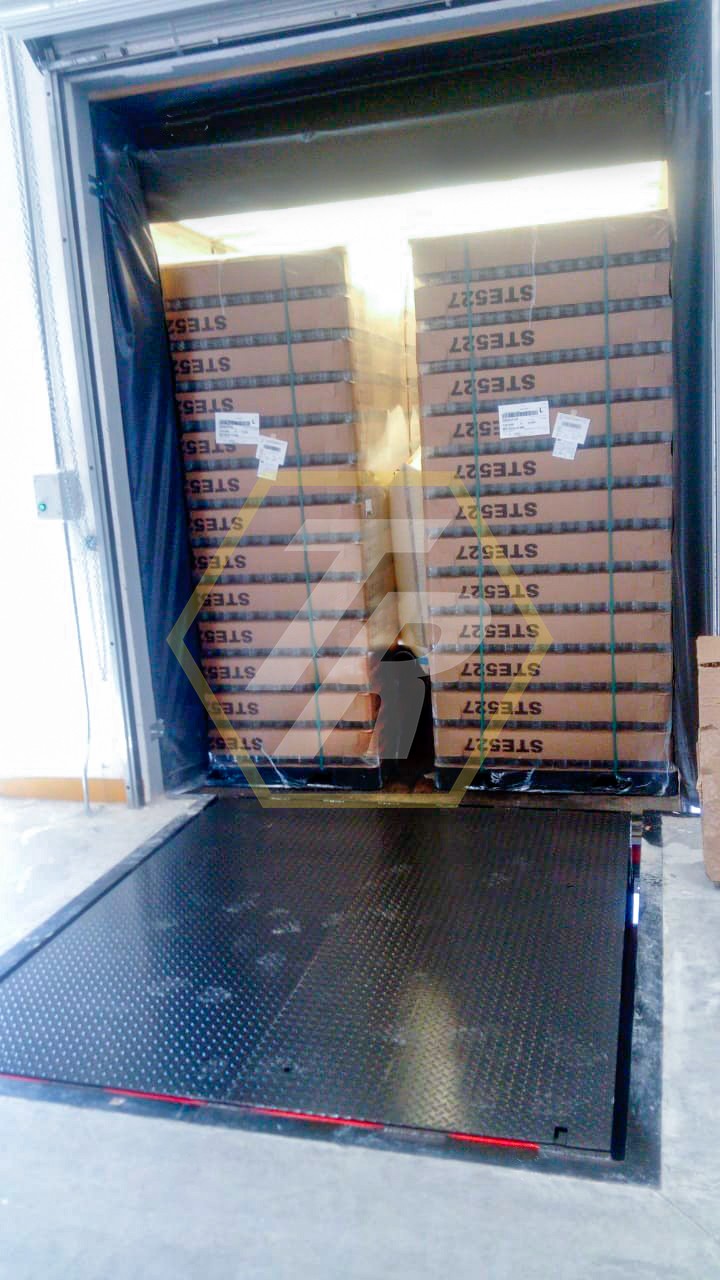

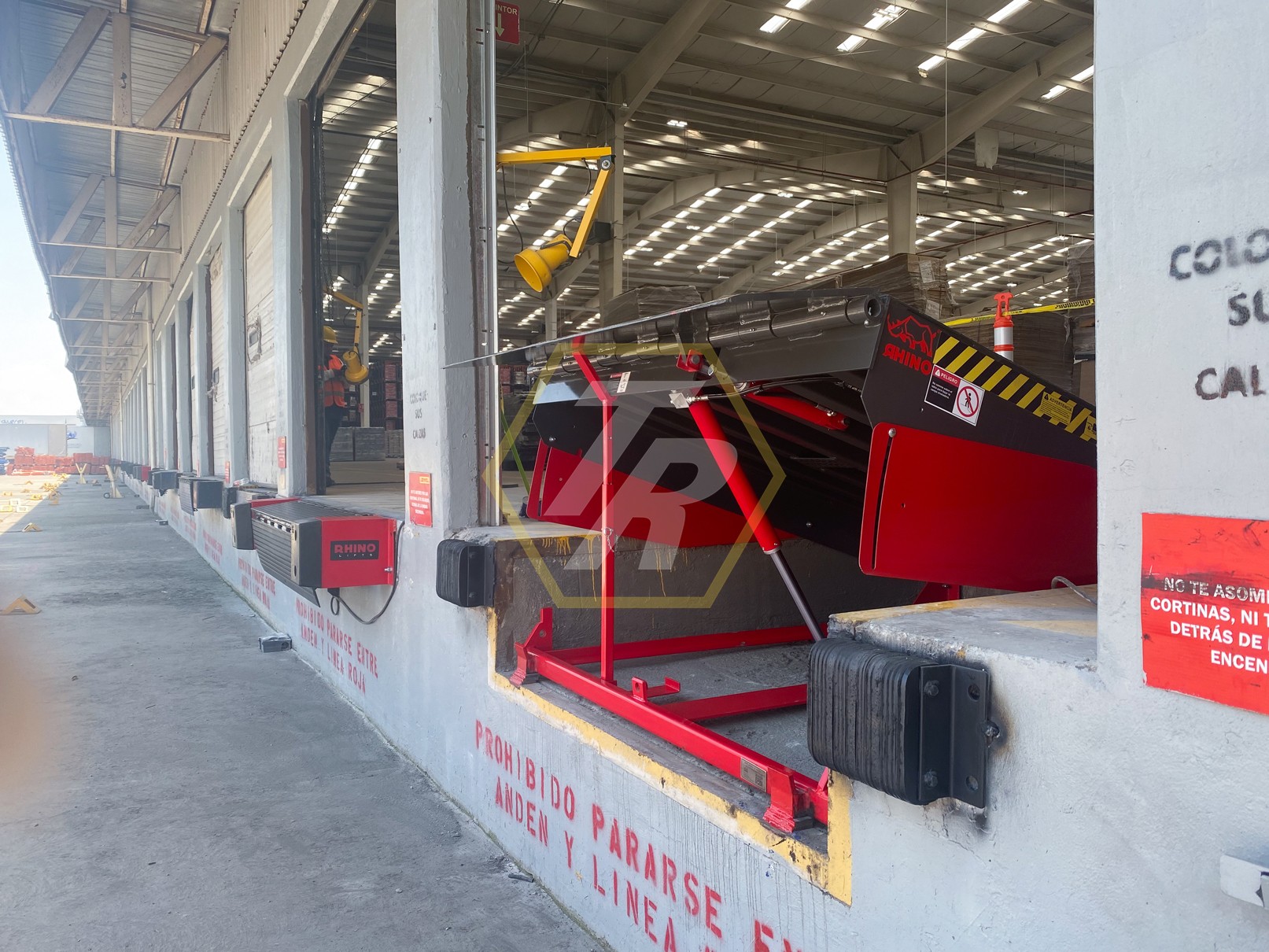

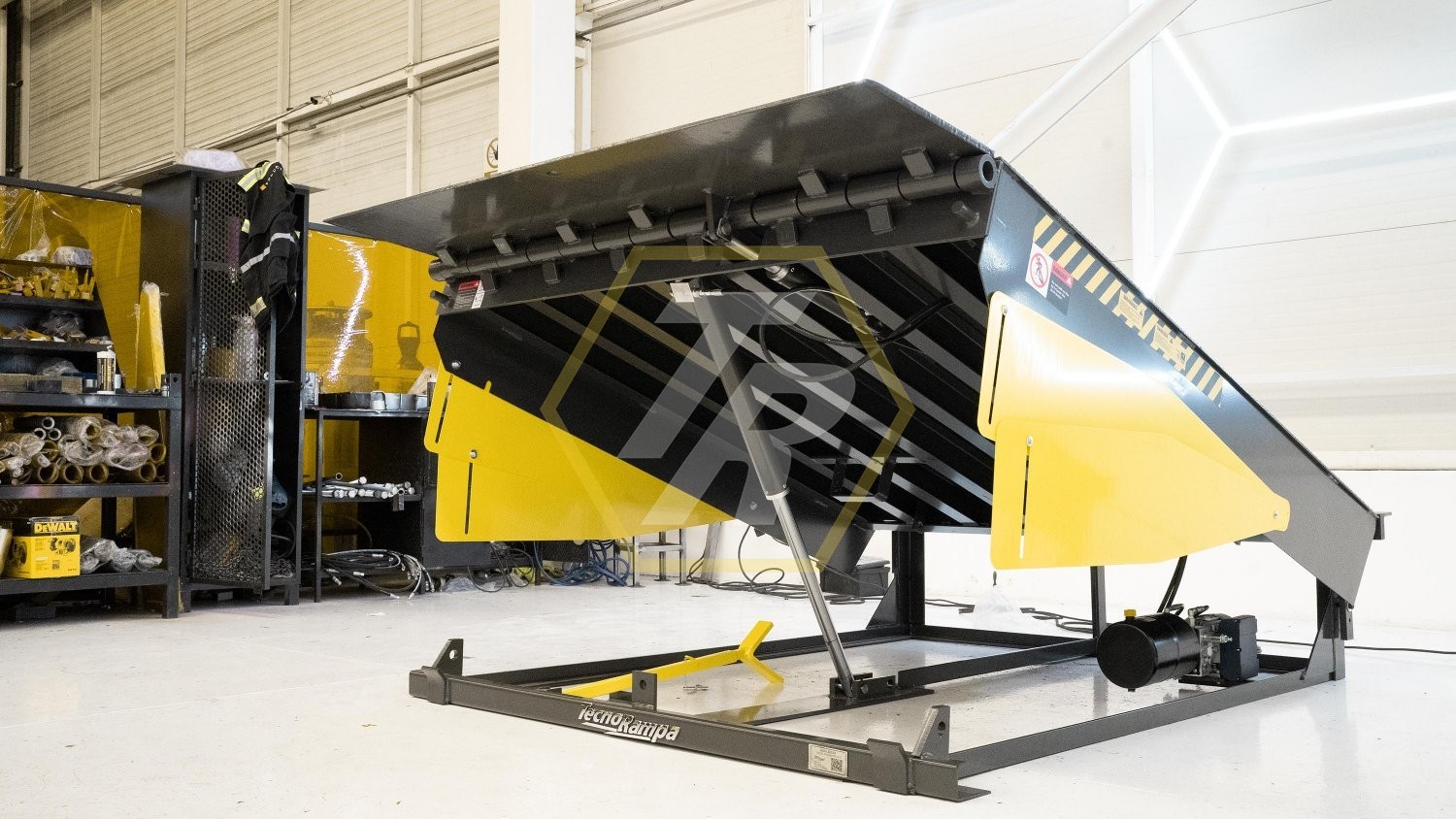

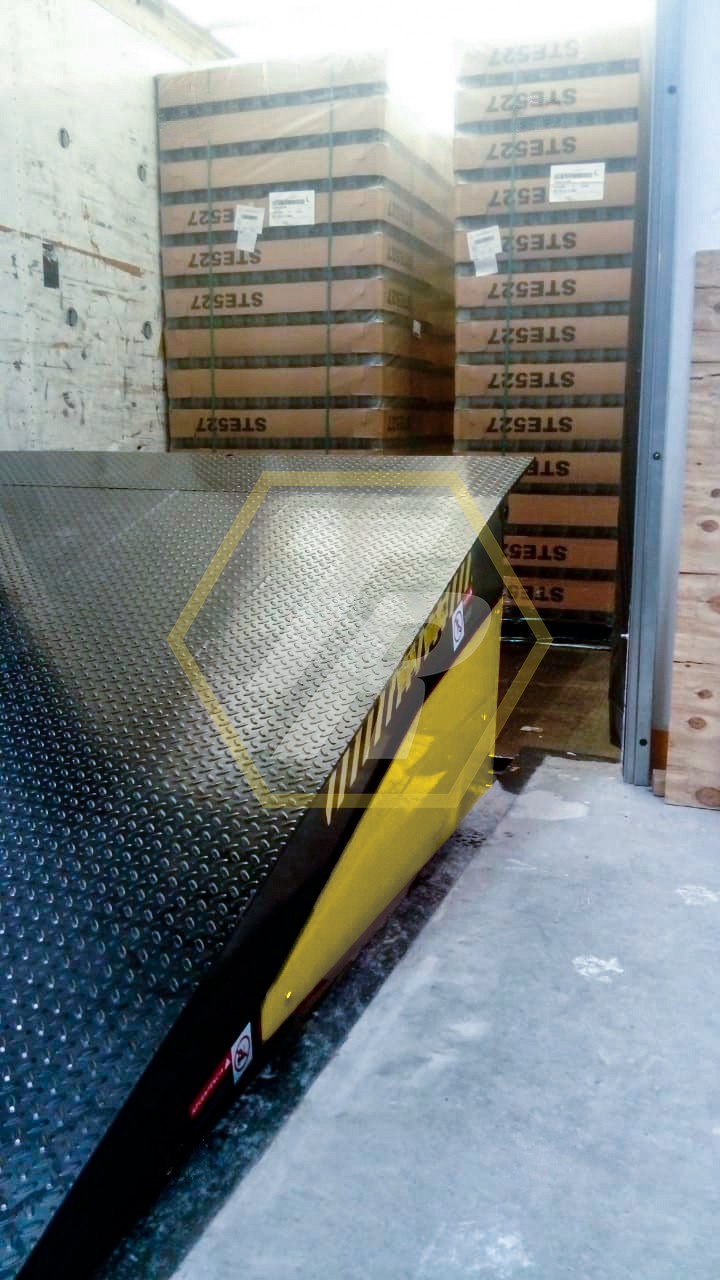

Our hydraulic dock leveler is designed to offer multiple solutions for loading and unloading operations of 30,000, 40,000, and up to 50,000 lbs, maintaining a perfect leveling between the warehouse and the unloading truck. Thanks to this powerful ramp system, operations logistics can be effectively optimized at the touch of a button, whether loading or unloading any type of heavy goods. It has an upper platform made of an anti-slip sheet that works as a safety guard when moving the merchandise, in addition to having 2 barrier supports and a safety fuse valve for fast and efficient operation. Thanks to the aesthetic and operational features of this ramp, it can be used in industrial buildings, warehouses, maintenance areas, shopping centers, logistics/distribution centers, and factories of any sector.

All our loading docks are designed to operate in conditions that involve constant use and variations in weather.

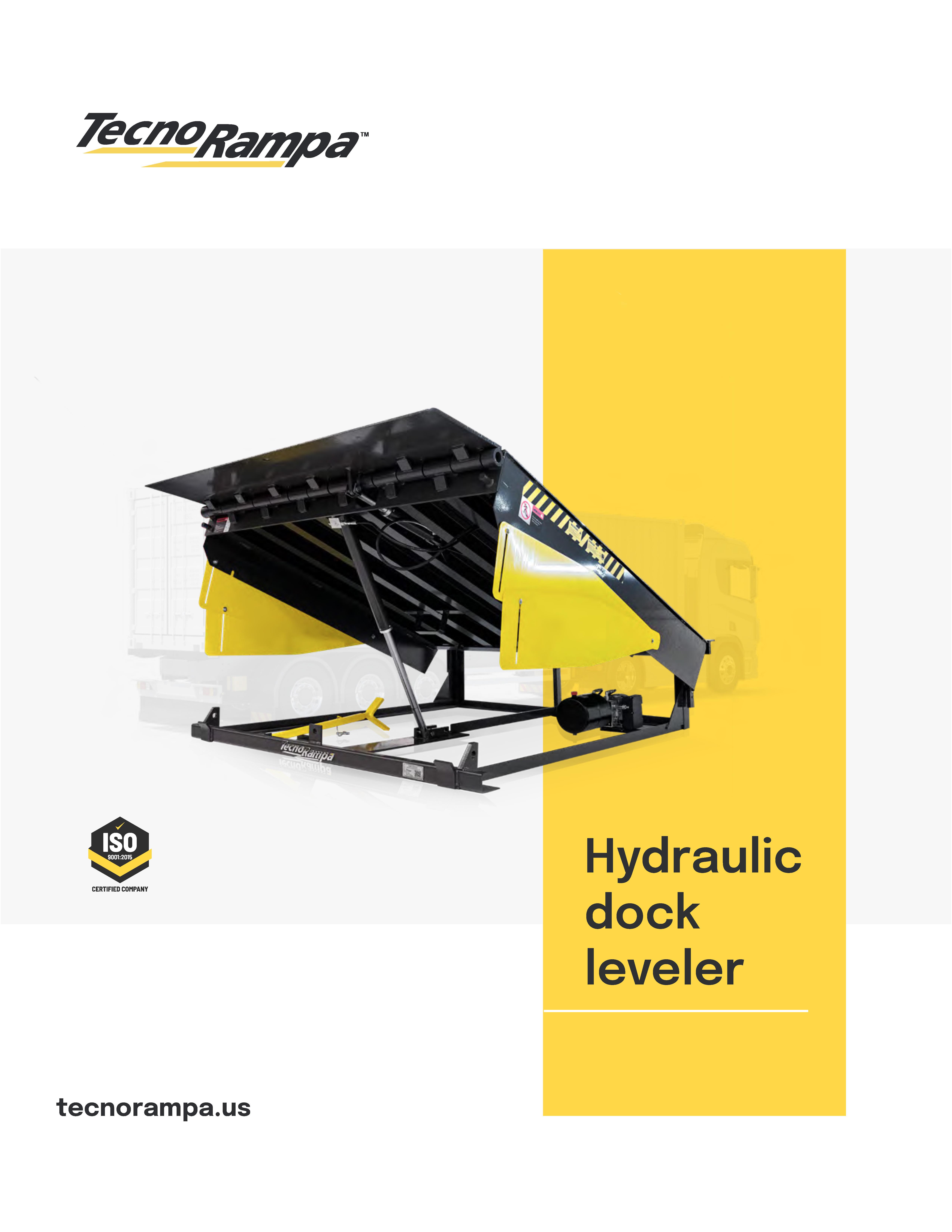

To learn more about the specifications of our dock leveler, download its user manual.

At Tecnorampa, we are committed to manufacturing ramps of the highest technology to deliver an effective solution in the logistics of each industry.



Technical specifications:

The ramp can be manufactured to carry loads of up to 30,000, 40,000, and 50,000 pounds.

Nominal dimensions: 6' X 8' (1829 mm x 2438 mm) *We are manufacturers; dimensional options available

Nominal thickness in platform: ¼" (6.4 mm)

Platform dimensions: 72" x 99 ½" (1829 mm x 2527 mm).

Structure: smooth sheet 3/16" thick.

Leveling: 12" (3048 mm) above dock level. 12" (3048 mm) low dock level.

Standard lip: 16" (406 mm) *Optional versions 18" and 20" lips

Nominal lip thickness: 5/8" and 3/4".

Operating system: hydraulic
