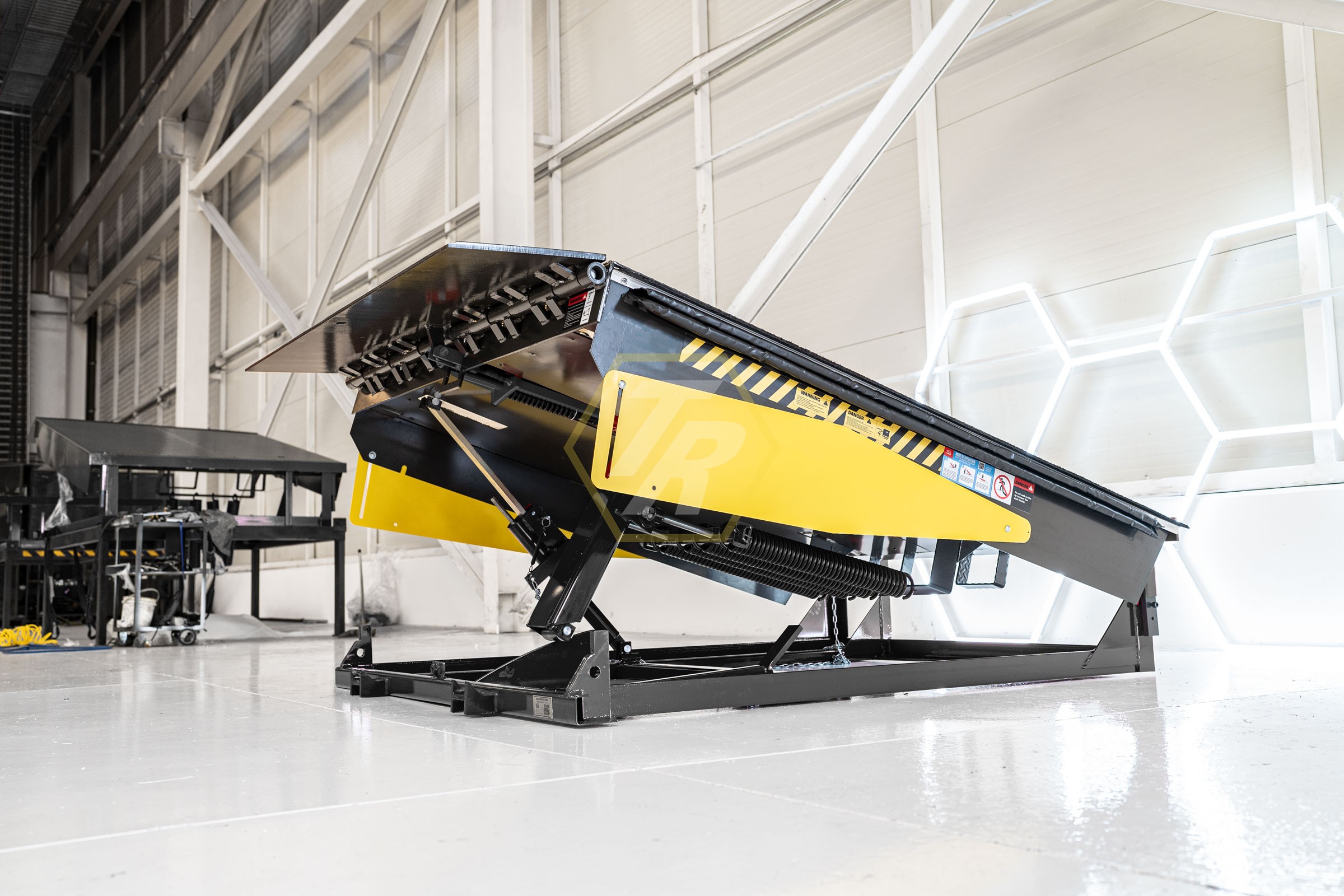

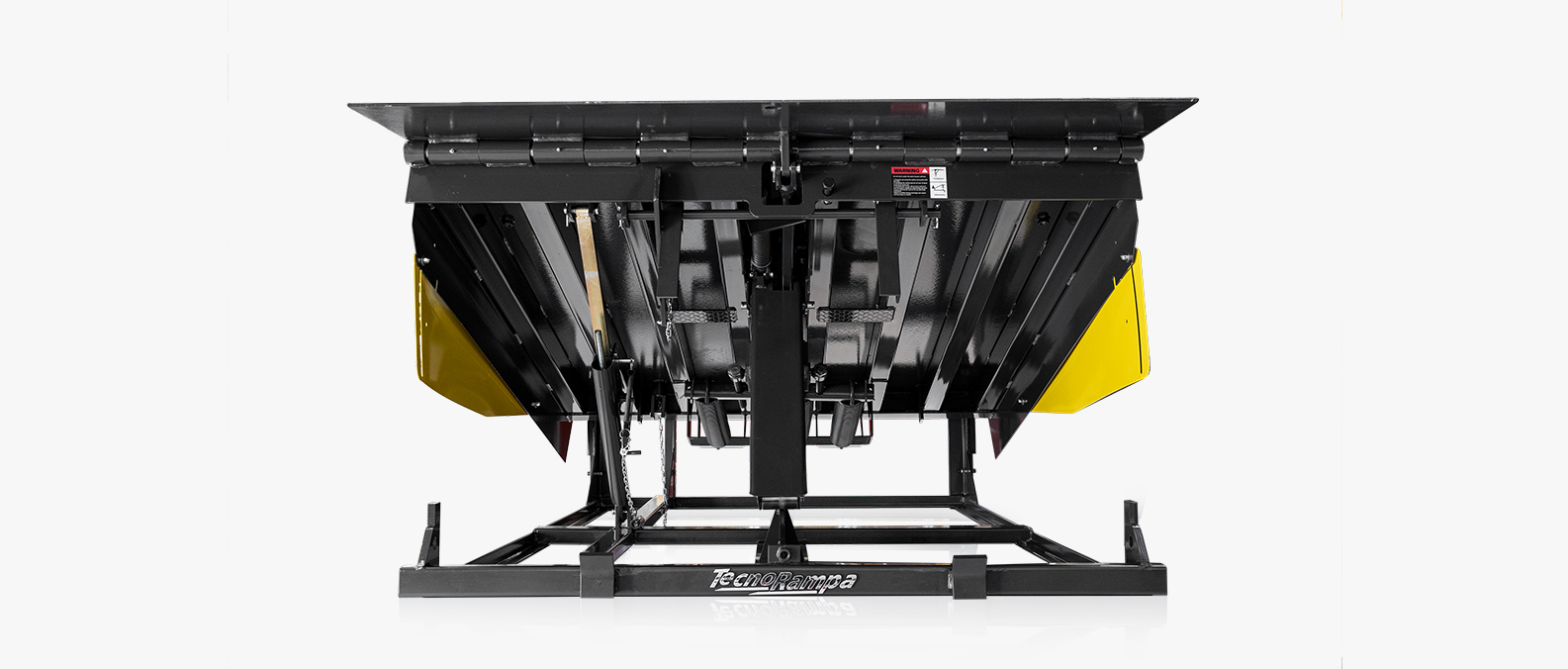

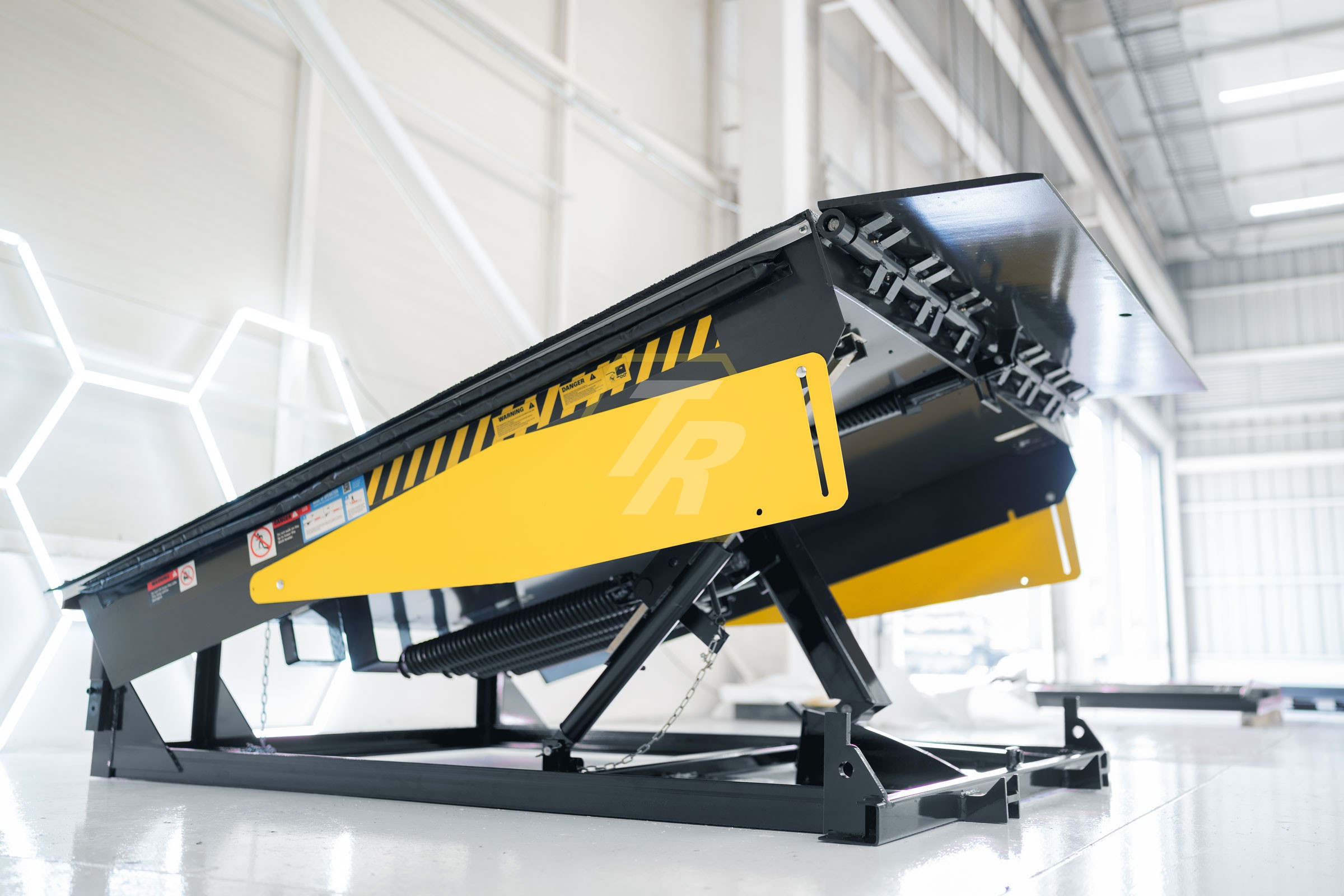

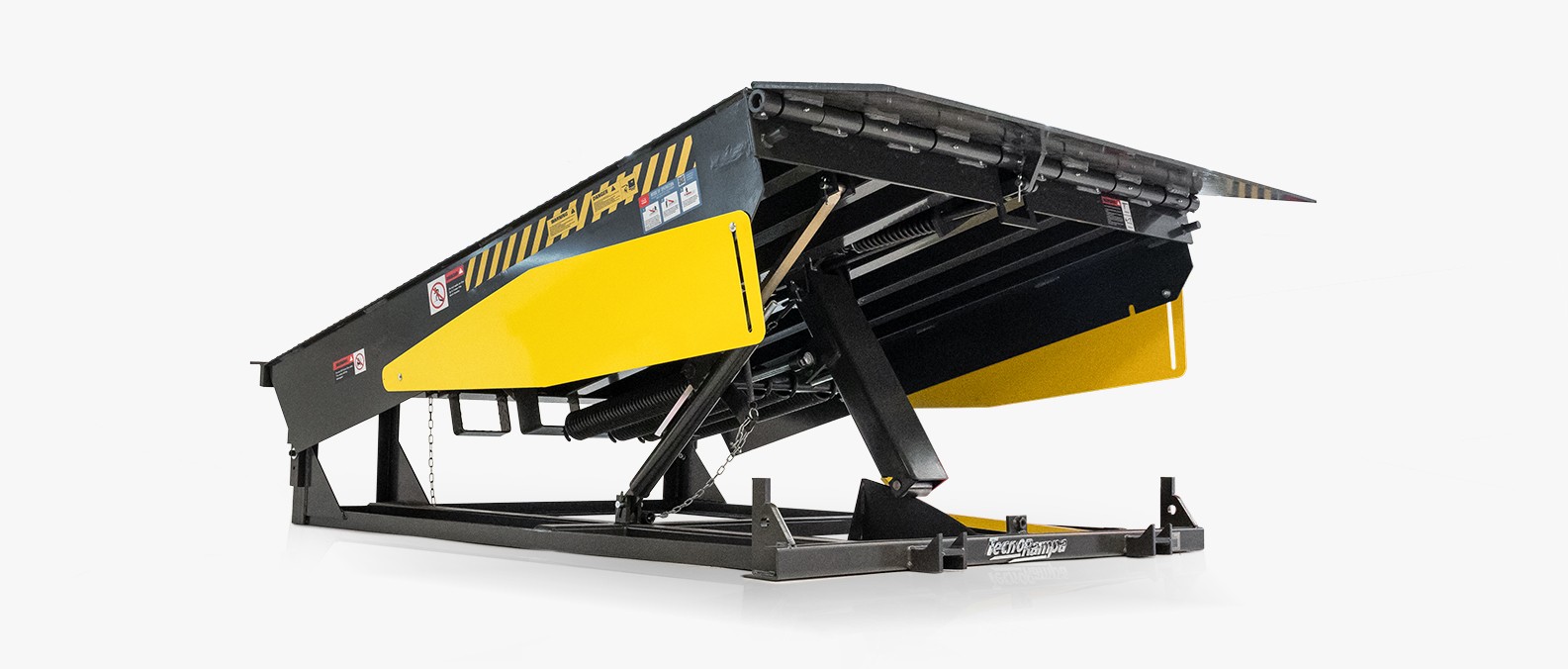

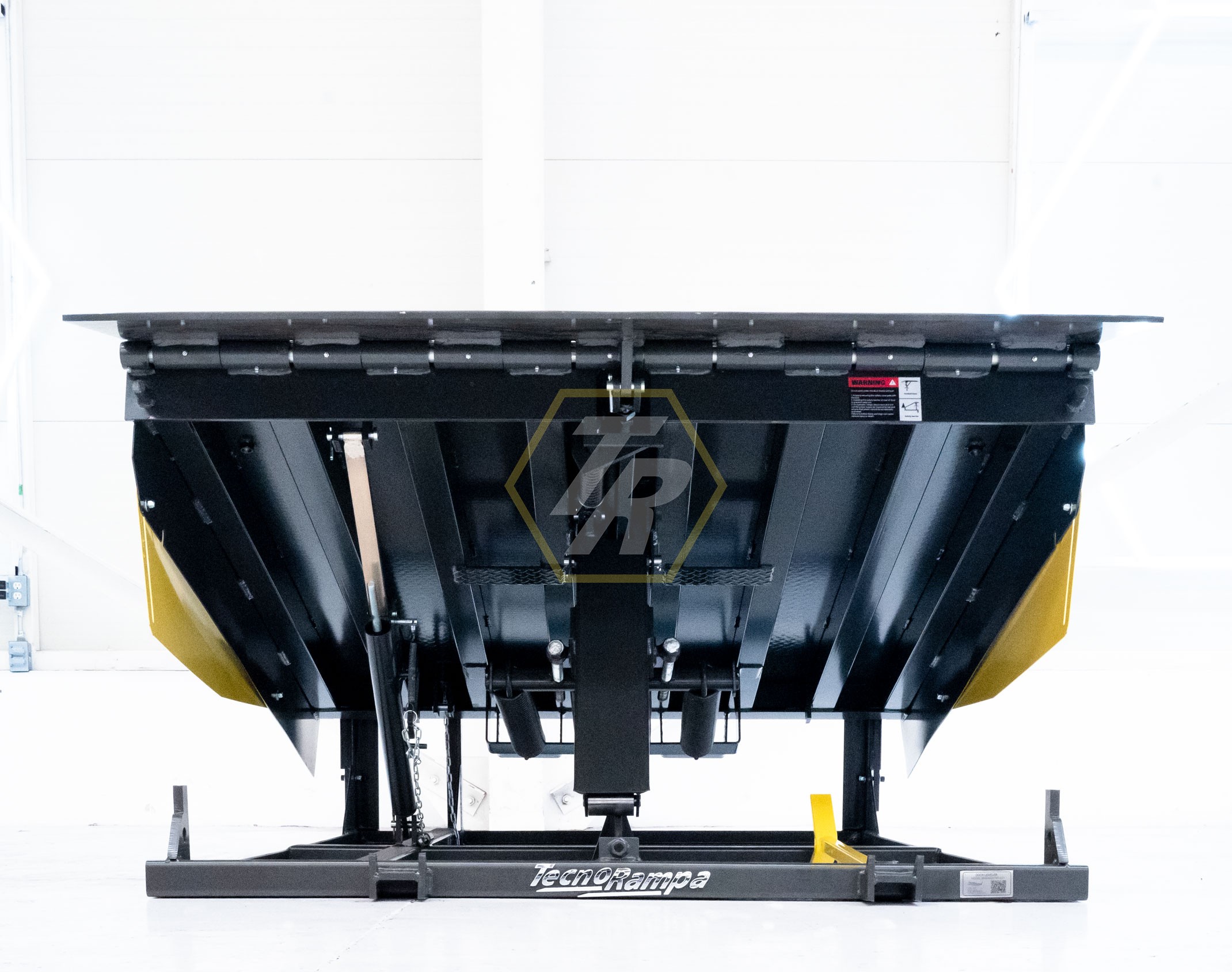

Mechanical Dock Leveler

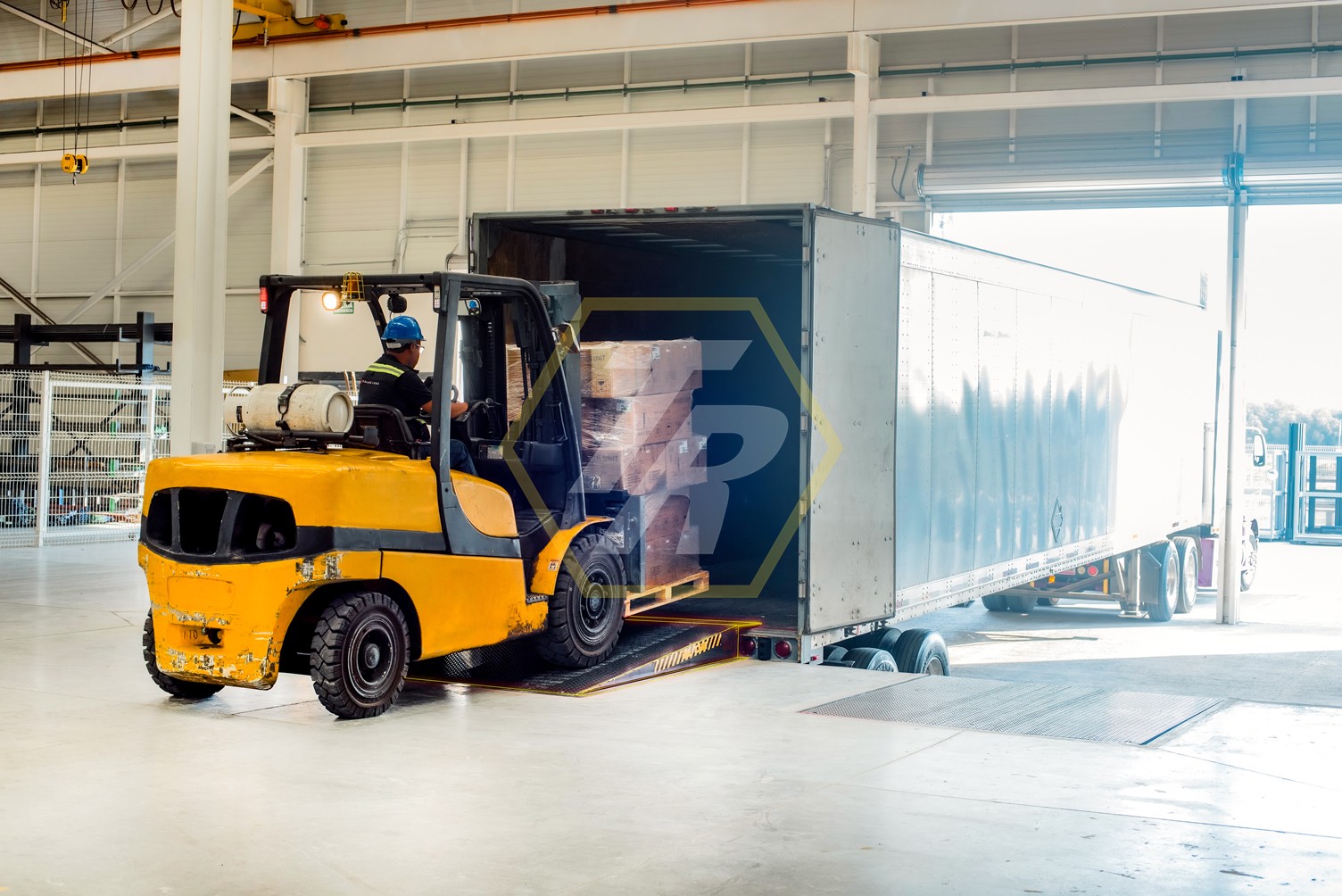

Our mechanical dock leveler/mechanical platform ramp is manufactured with innovative components that provide total control of loading and unloading operations, maintaining perfect leveling between the warehouse and the unloading truck. One of the advantages of operating with a mechanical ramp is that it can be loaded up to 40,000 lbs, as it is equipped with side guards, safety bar, slip-resistant sheets, automatic locking lips and strong tension springs for lifting that will provide an easy and totally safe operation, and it only requires a minimum force to deploy the platform.

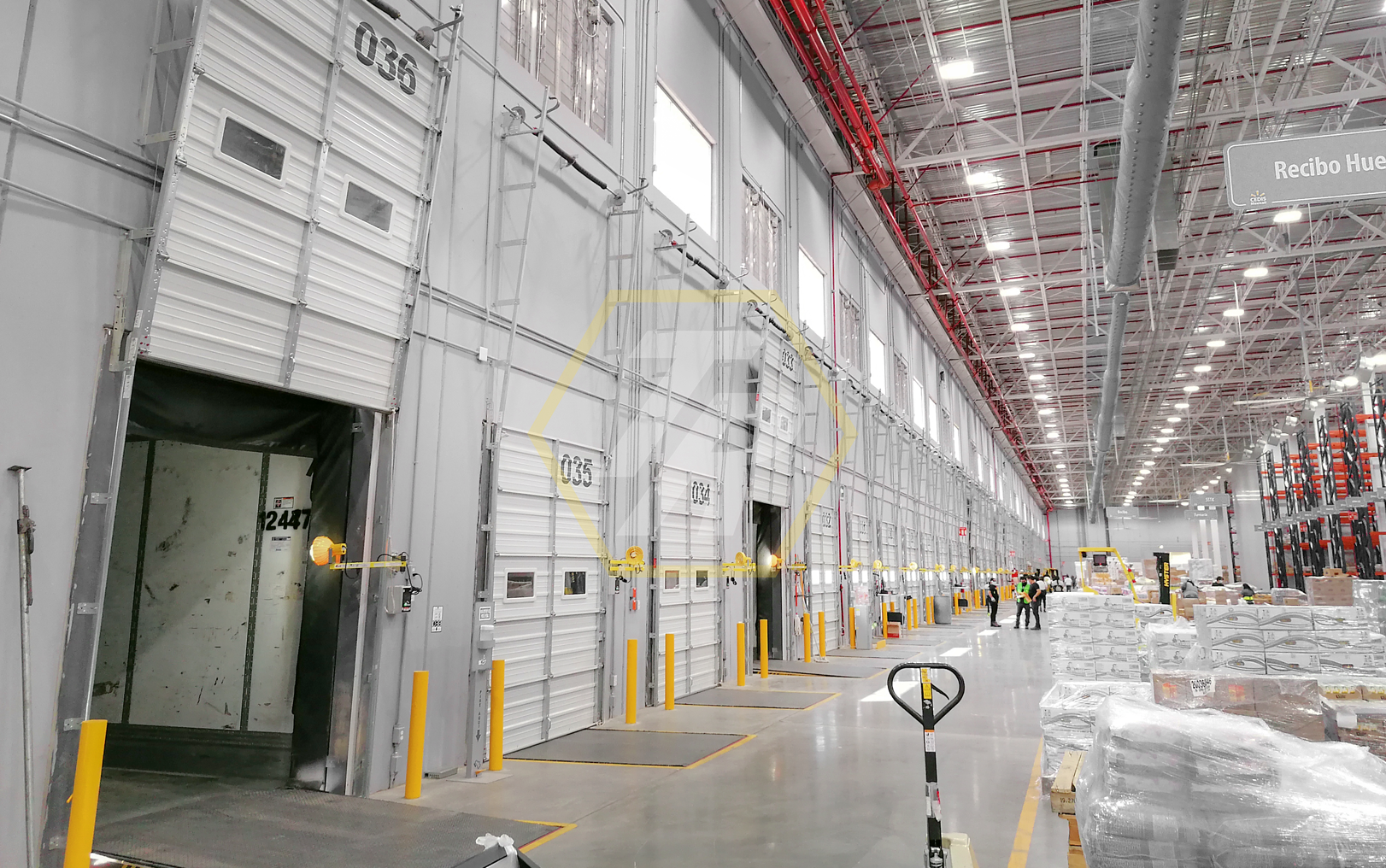

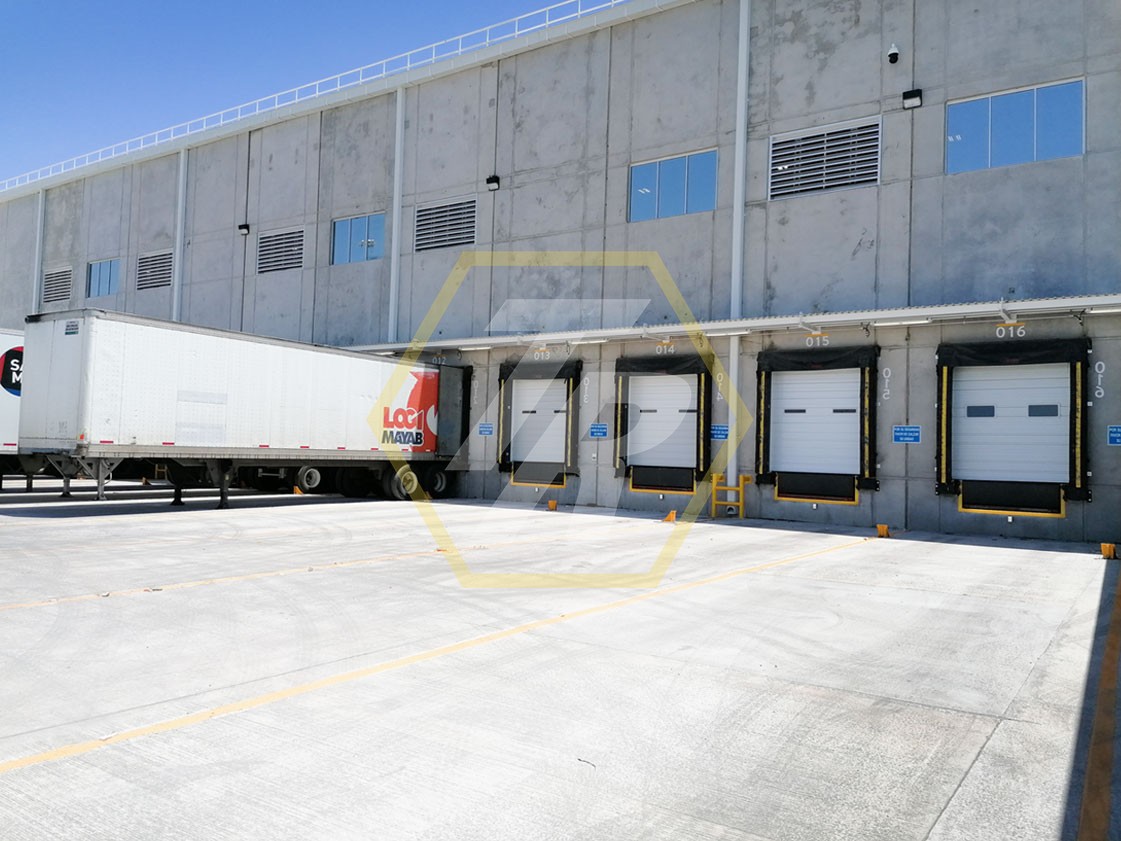

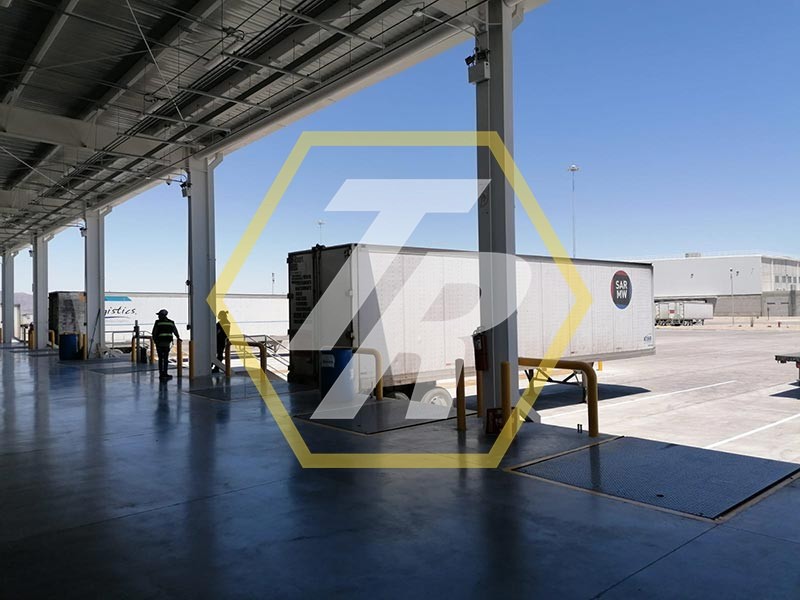

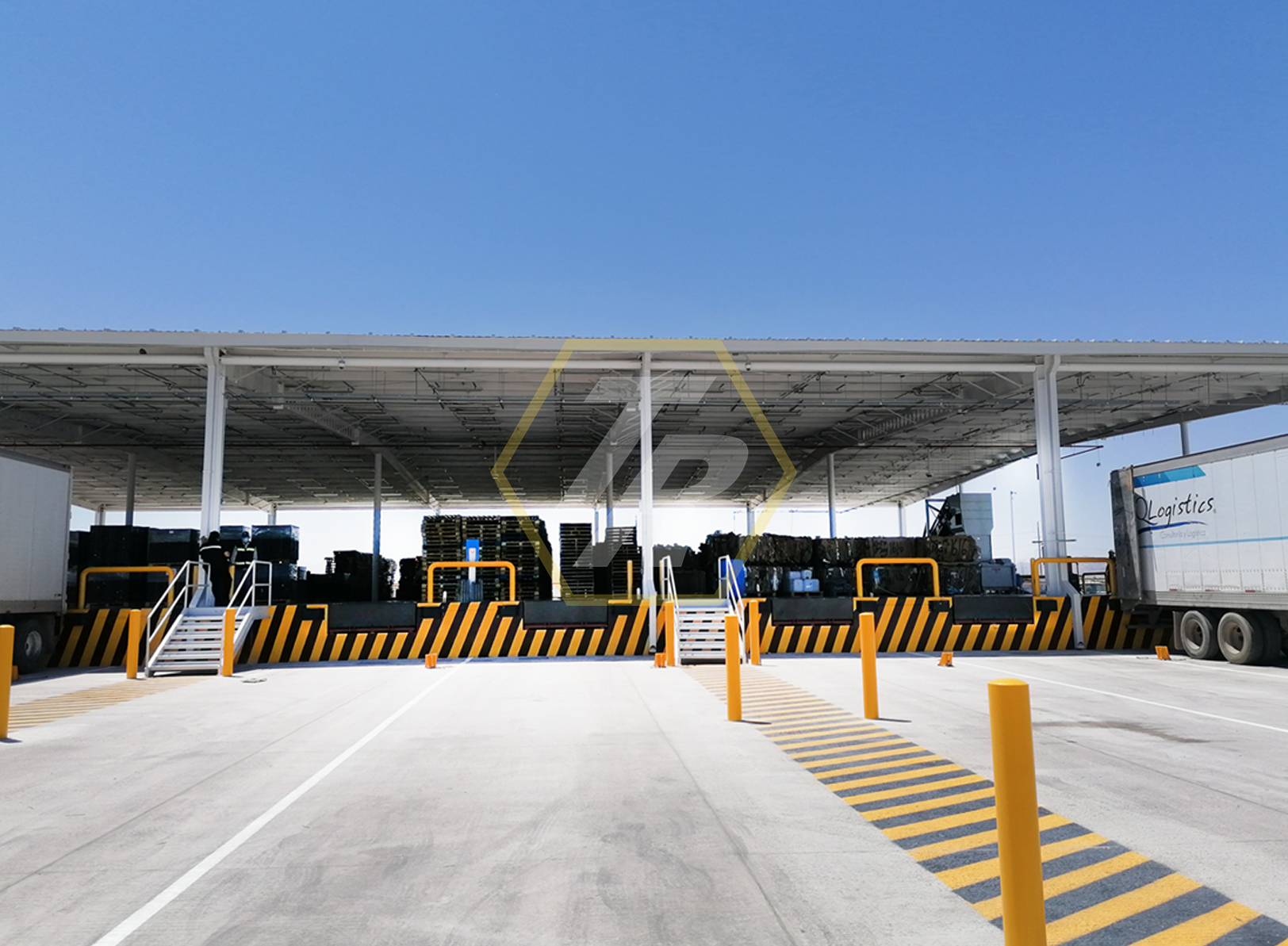

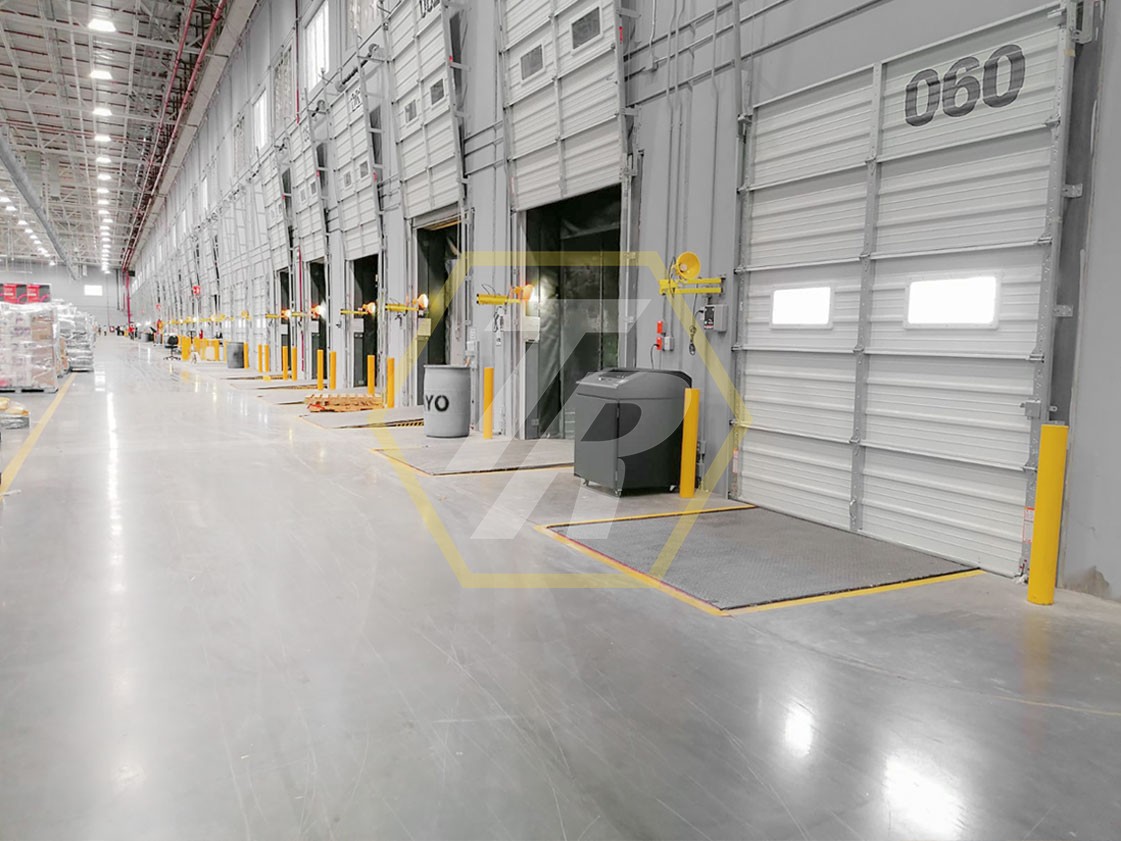

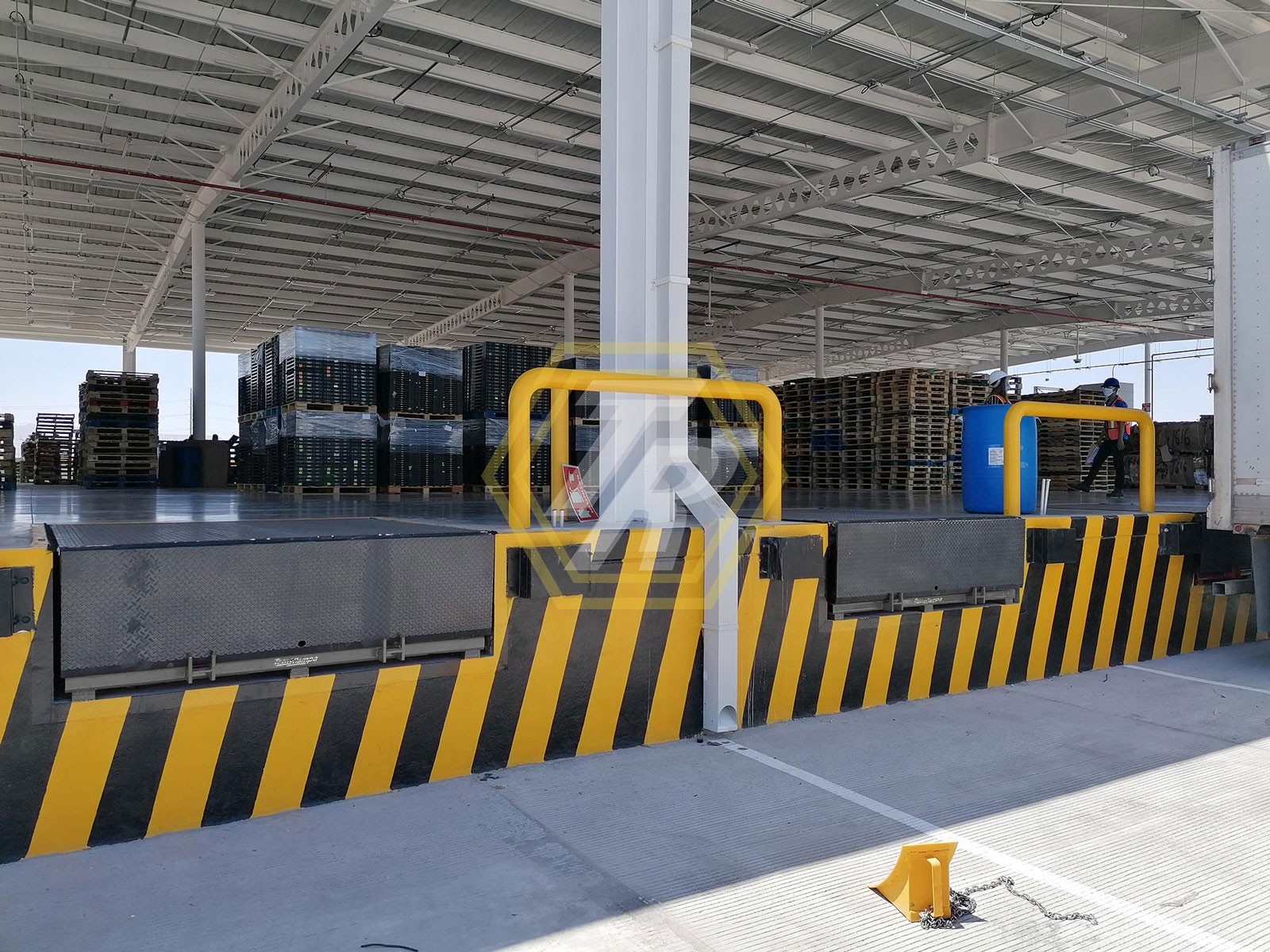

Thanks to the aesthetic and operational features of this ramp, it can be used in industrial buildings, warehouses, maintenance areas, shopping centers, logistics/distribution centers, and factories of any sector.


Technical details:

Load capacity: 30,000 and 40,000 lb
Nominal dimensions: 6' x 8' (1829 mm x 2438)
Nominal thickness on platform: 1/4" (6.4 mm)
Platform dimensions: 72" x 99" 1/2" (1829 mm x 2527 mm)
Framing: 4" IPS and 6" x 4" x 1/4" center HSS
Leveling: 12" (3048 mm) above platform level
12" (3048 mm) below platform level
Standard lip: 16" (406 mm)
Nominal lip thickness: 1/2" (1/2")
Operating System: Mechanical
Finish: Lead gray/red

Components :

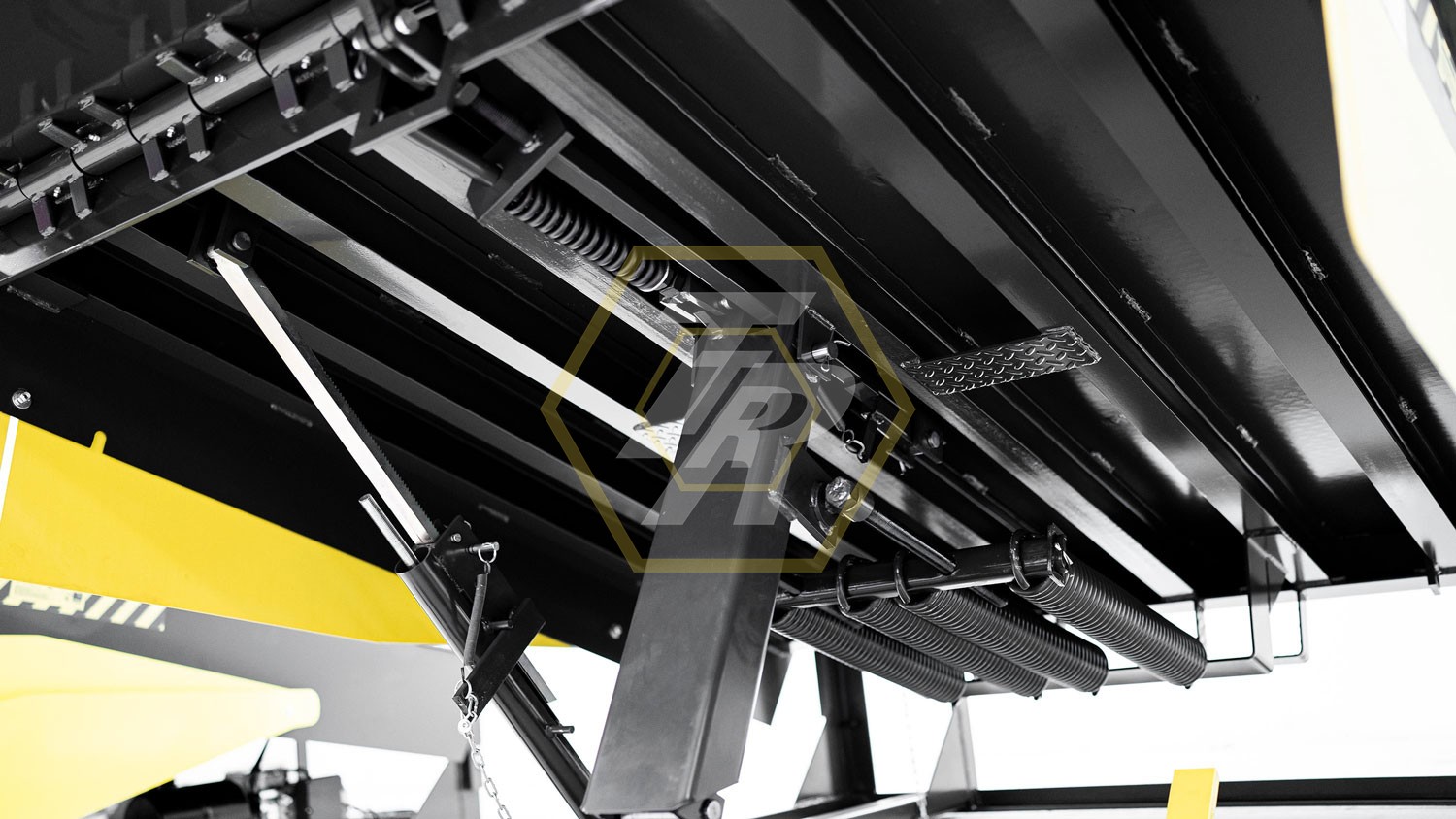

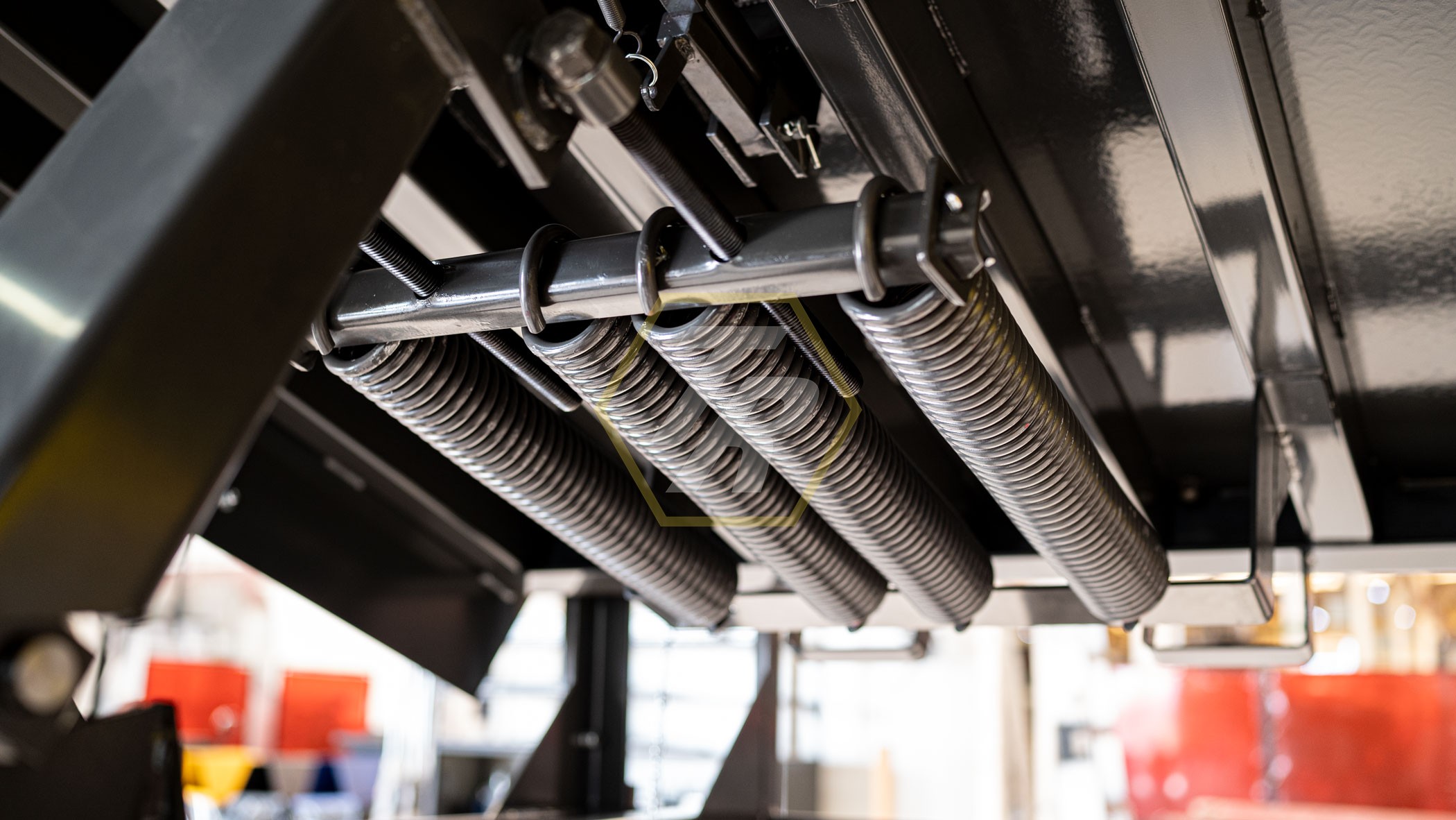

Tension springs for lifting

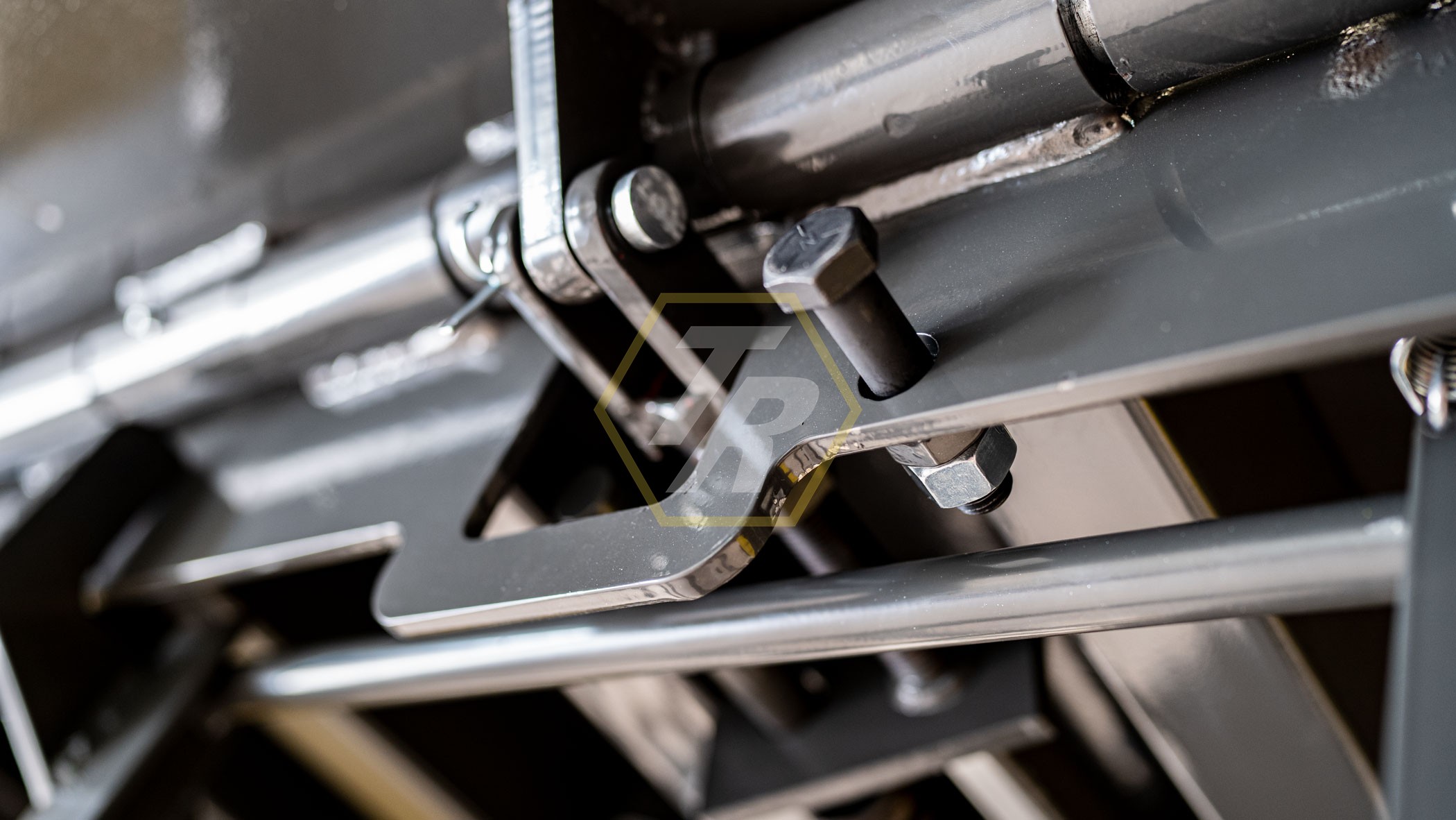

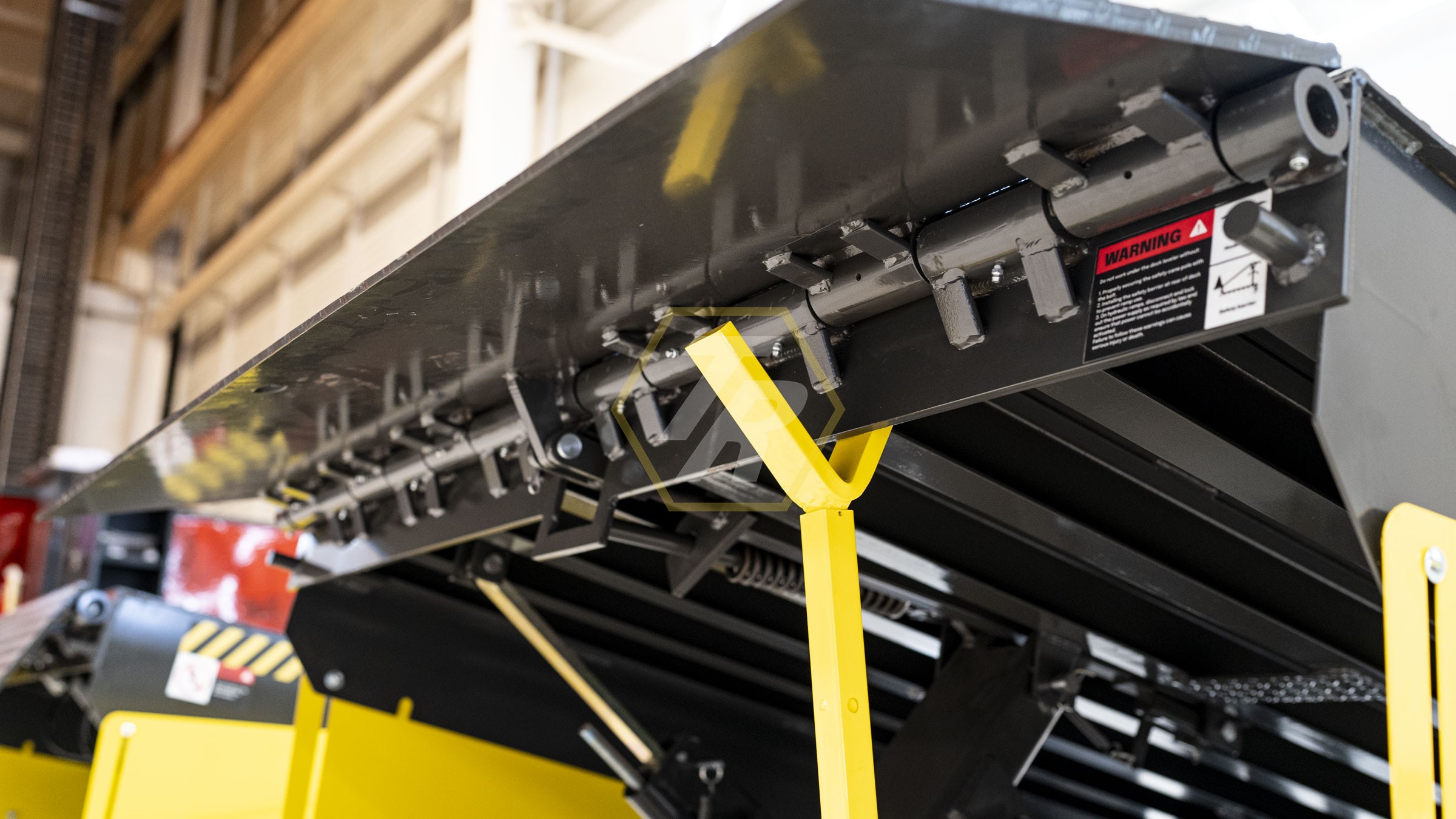

Self-locking lip with mechanical locking system
Fixed side guards with high visibility safety stripes
Rack and pinion lock to keep the ramp stable and safe

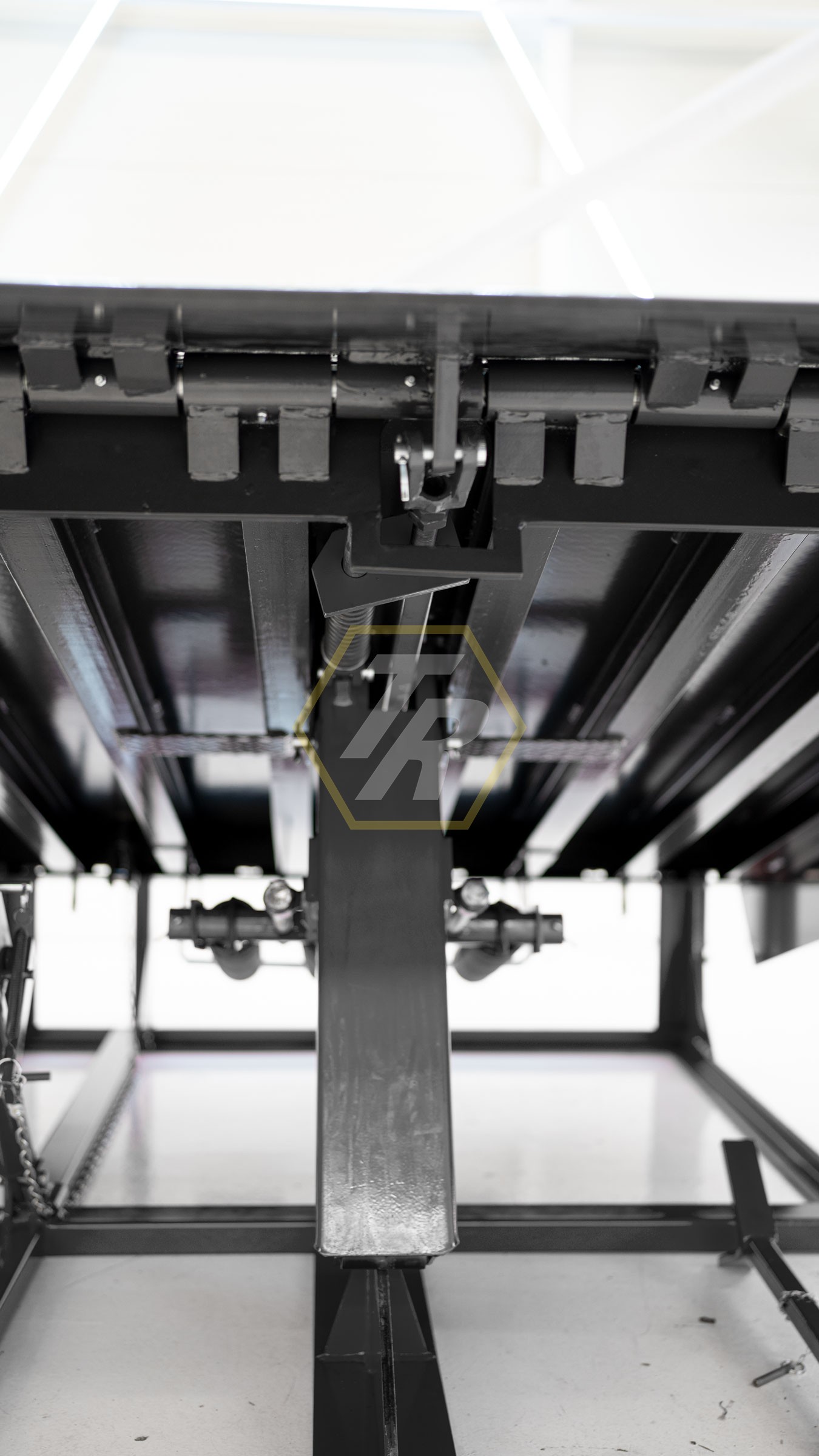

Safety bar supporting the platform and lip

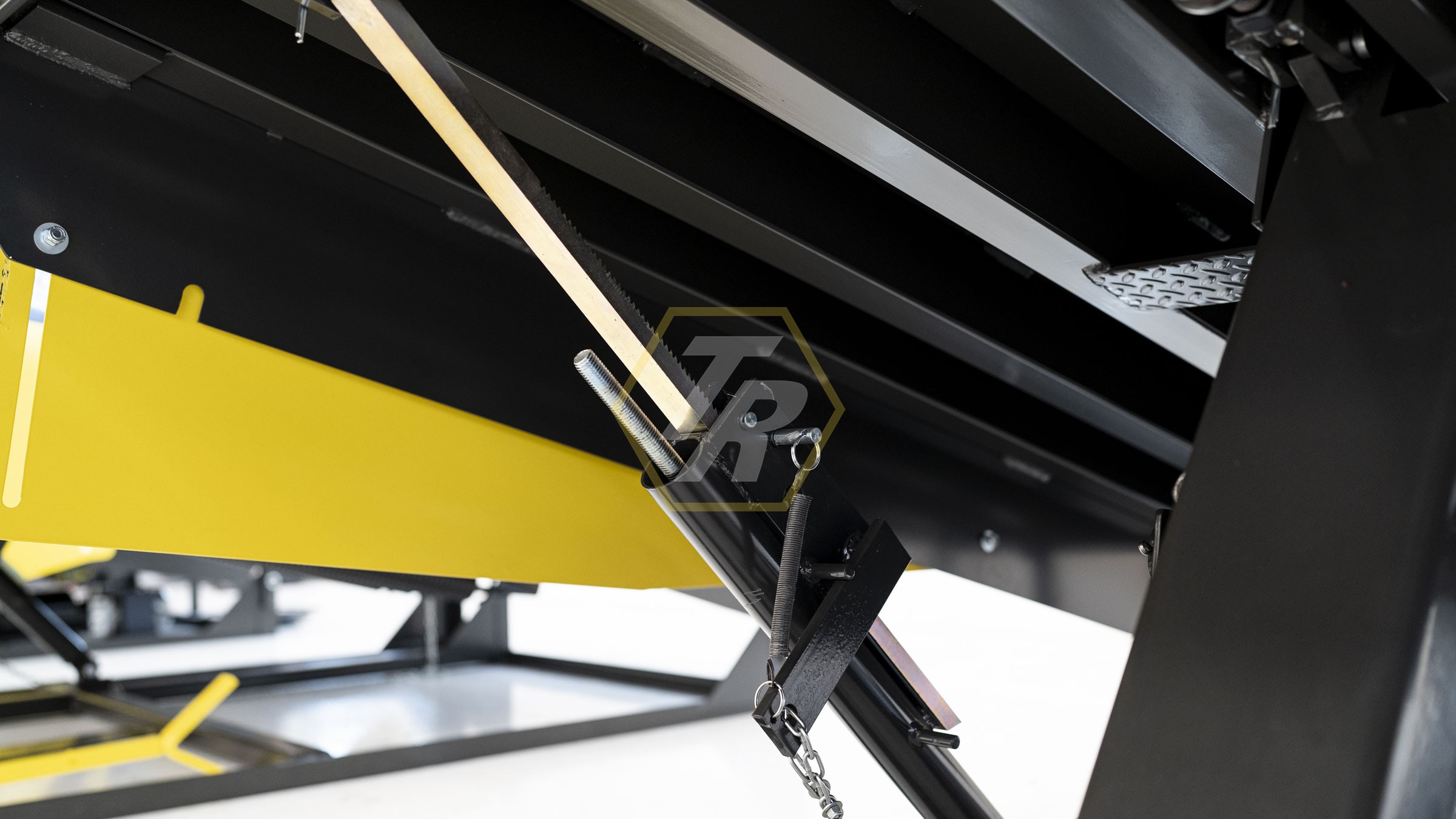

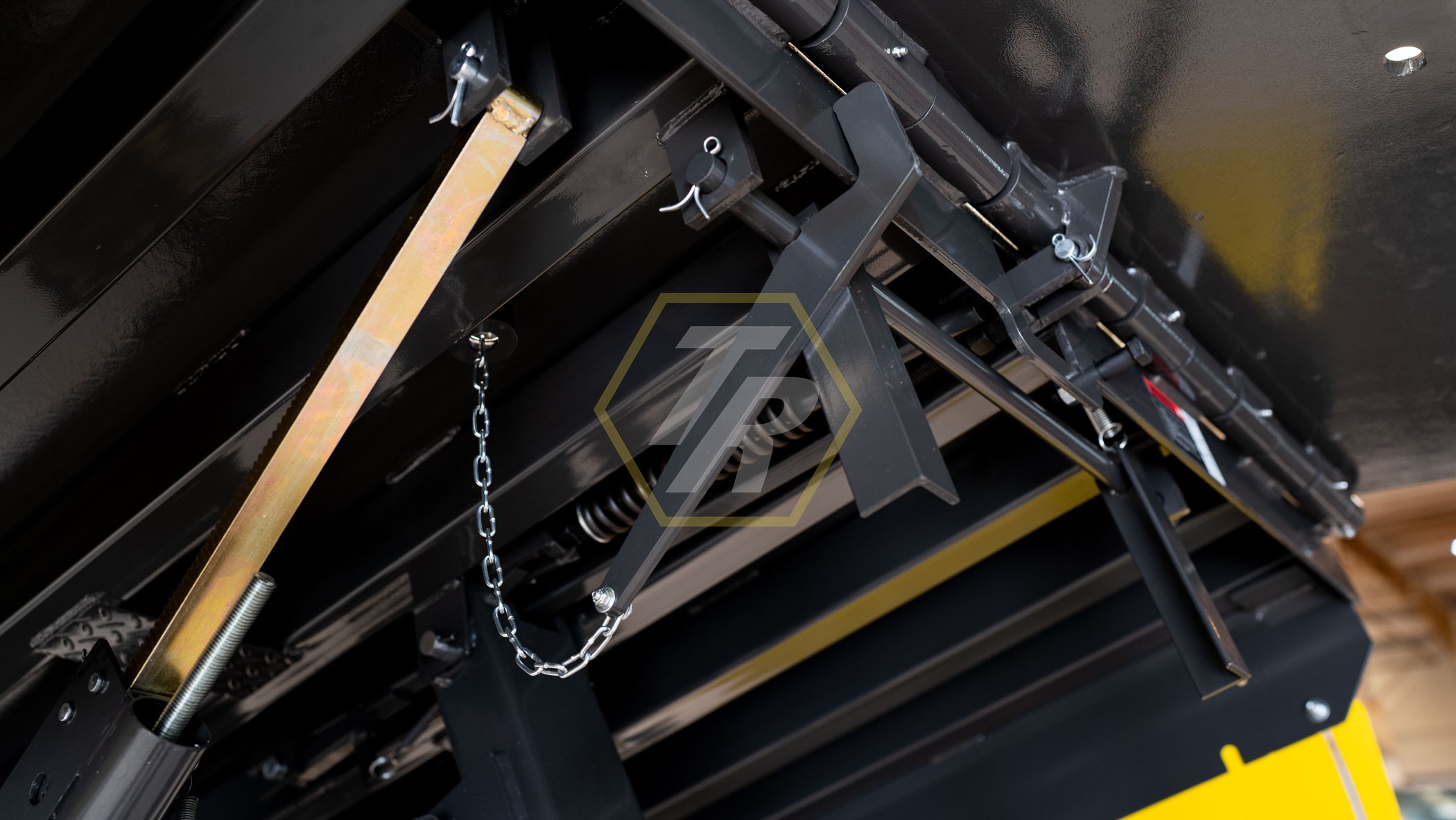

Ergonomic lifting chain to deploy the platform
Anti-skid upper platform



Similar products

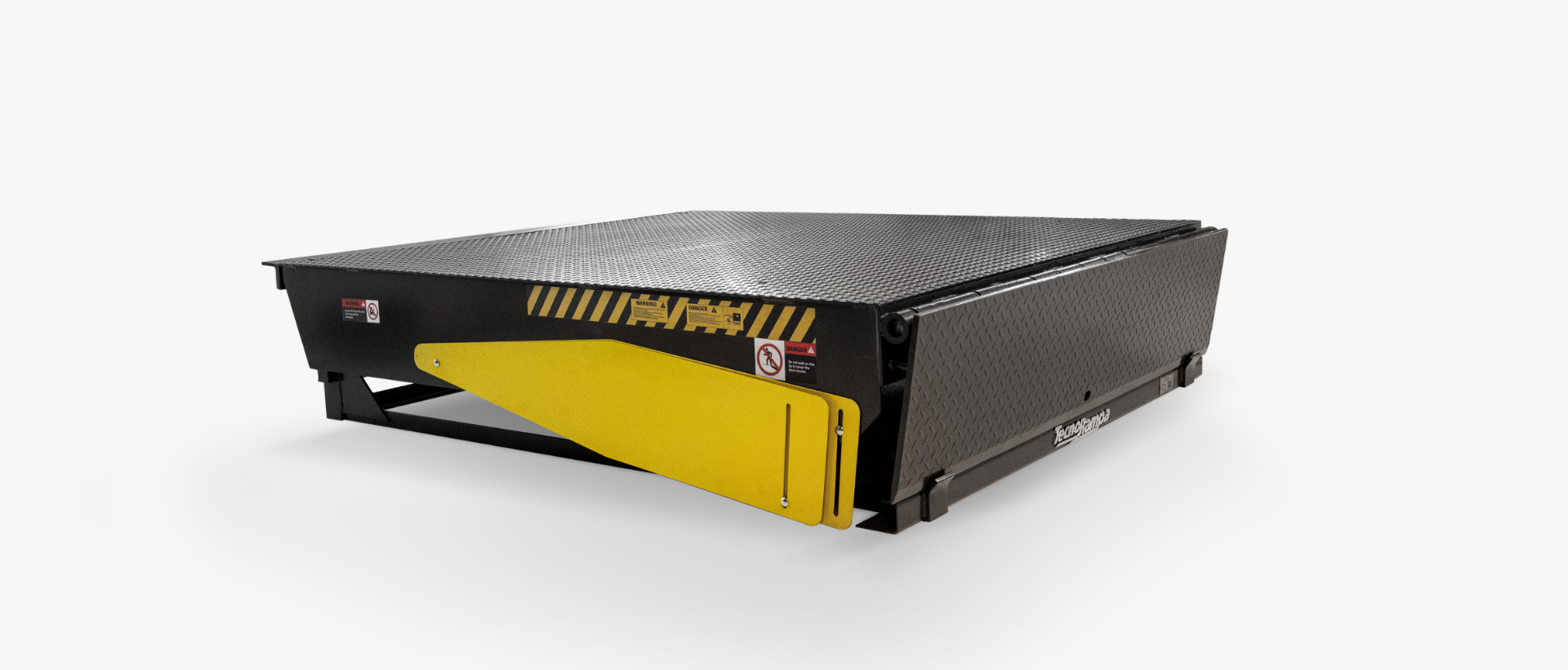

Hydraulic Dock Leveler
